Product Details
＋
Keychron V5 Max is the latest version of the popular Keychron V5. New in this version is 2.4 GHz wireless through the included Type-C and Type-A receivers that are stowed directly in the back of the board. The V5 Max includes their latest sound-absorbing foam that creates a pleasant typing experience and is available in fully assembled versions. Similar to the original V5, the Max works great for both macOS and Windows due to their physical toggle that allows for quick keymap layer changes.
Keychron V5 Max Keyboard Features:
- 96%, 1800 Compact Layout (Knob)
- Gasket Mount
- QMK/VIA Support
- Wireless Connectivity
- 2.4 GHZ and Bluetooth 5.1
- macOS & Windows Compatibility
- System toggle between the two with a saved layout for each
- Additional Win & Mac keycaps included for fully assembled version
- ABS Case
- Polycarbonate Plate
- PCB Screw-in Stabilizers
- Hotswappable
- Polling Rate: 1000 Hz
- Assembled:
- Keycaps: OSA Doubleshot PBT
- Switches: Gateron Jupiter
| Type | Operating | Pre-Travel | Total Travel | Lubed | |
| Red | Linear | 45g | 2.0mm | 4.0mm | Yes |
| Brown | Tactile | 55g | 2.0mm | 4.0mm | Yes |
| Banana | Tactile (HP) | 59g | 2.0mm | 3.4mm | Yes |
- Available in:

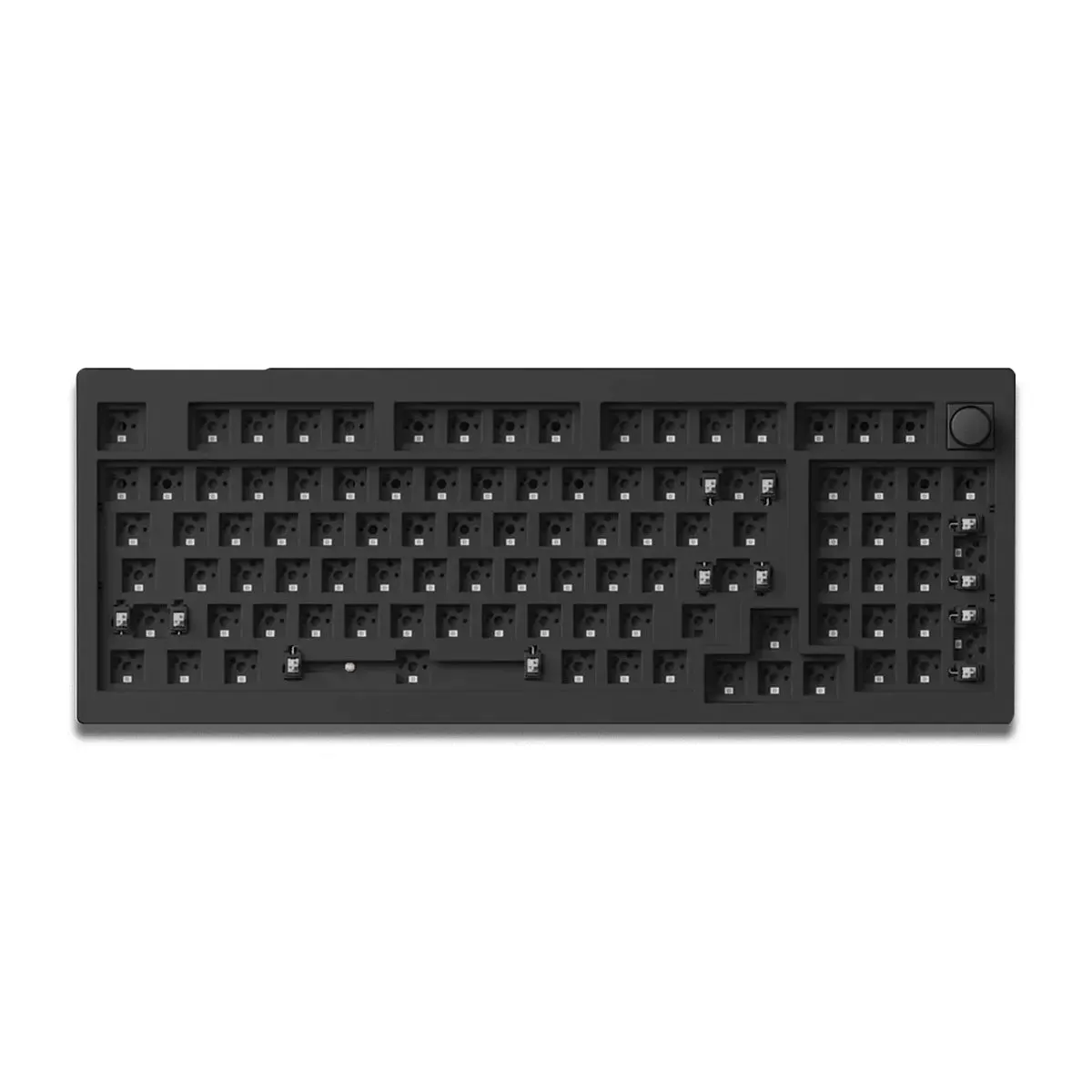

- Barebone Knob

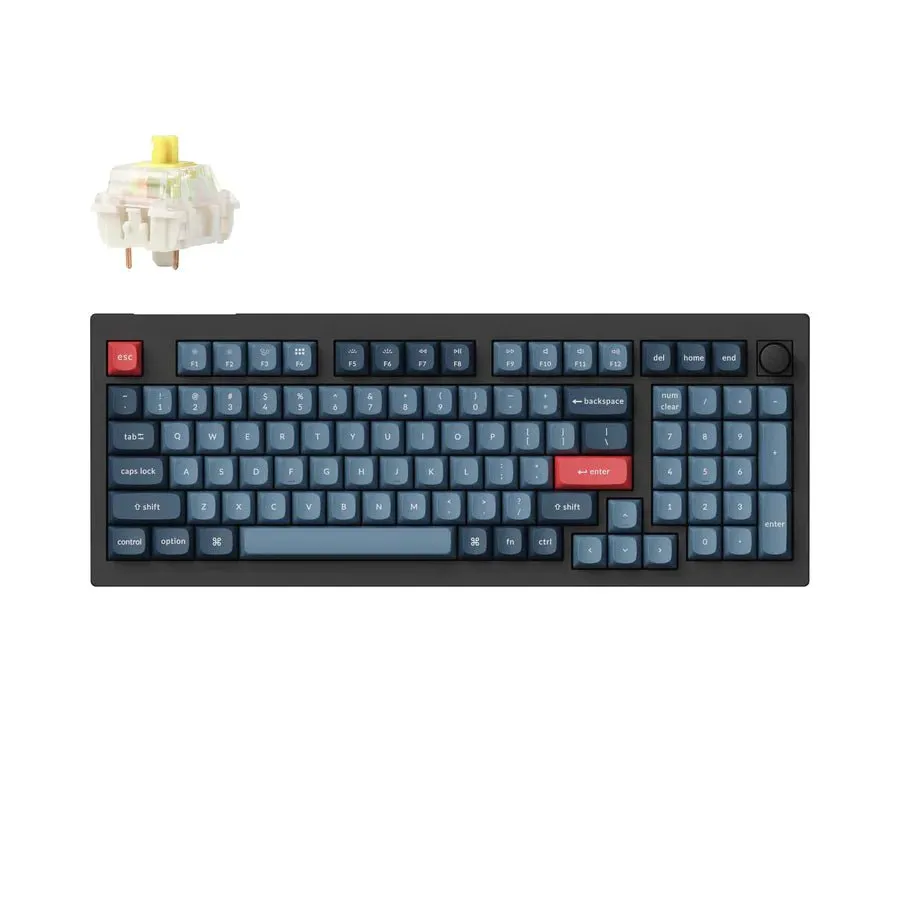

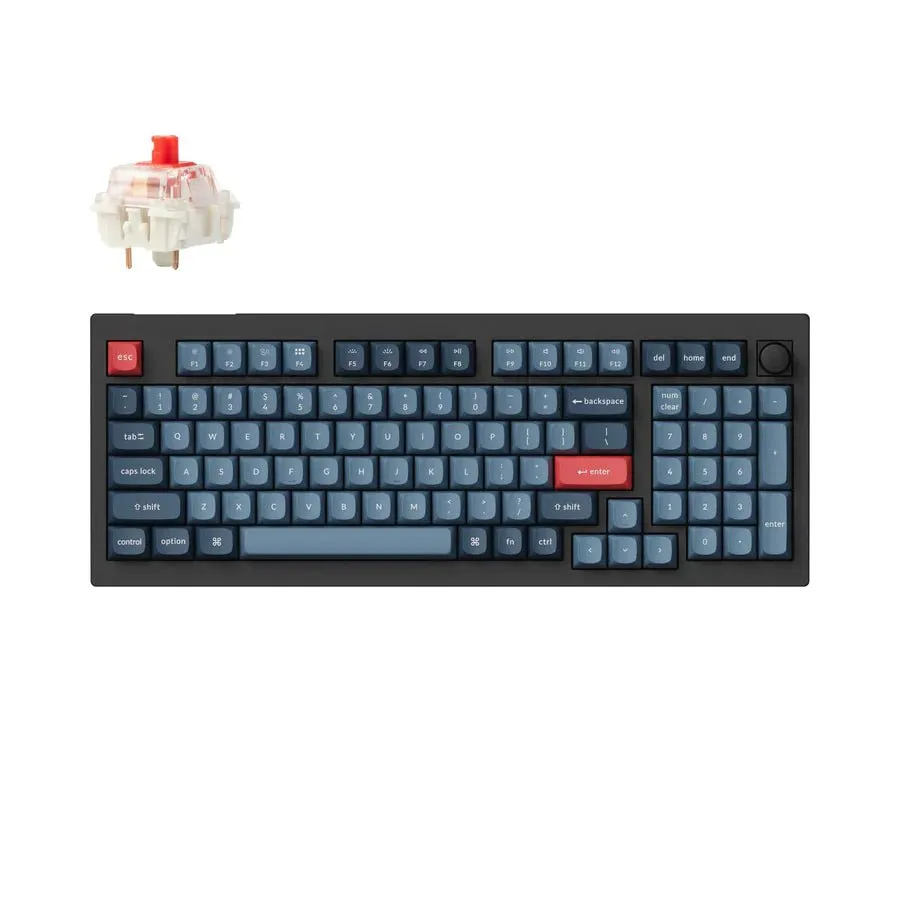

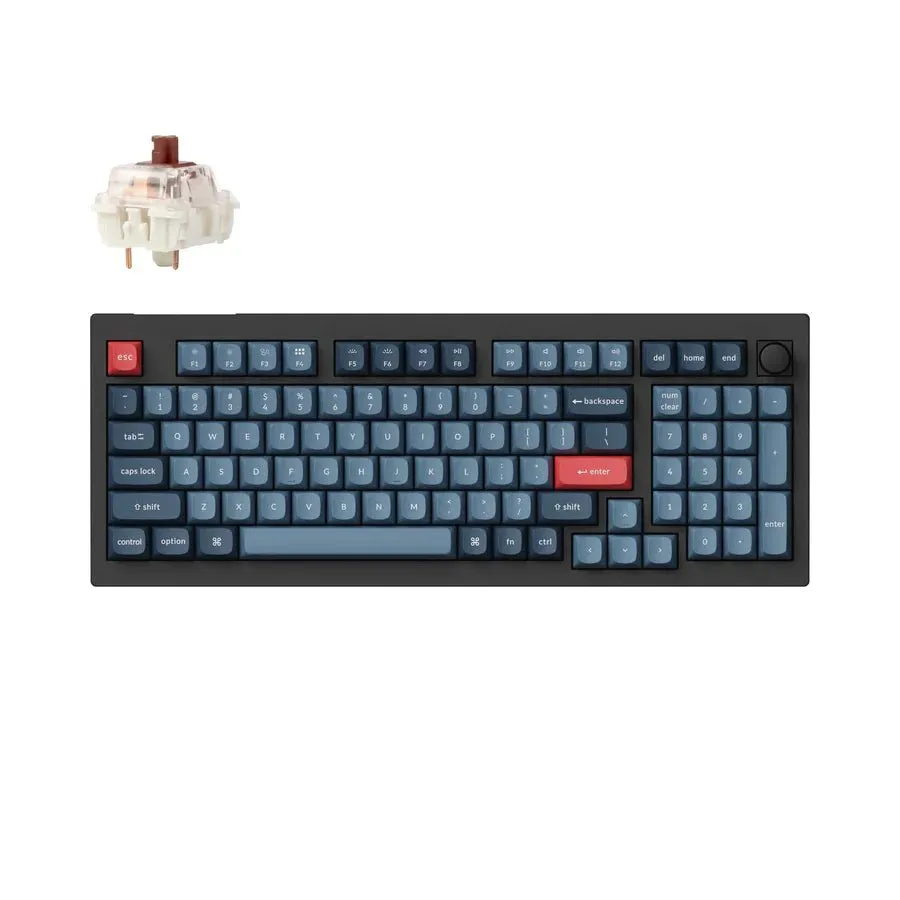

- Assembled: Jupiter Red, Jupiter Brown, Jupiter Banana
Includes:
- 1 Keychron V5 Max Keyboard Kit
- 1 Case
- 1 PCB
- 1 PC Plate
- 1 Sound Absorbing Foam
- 6 Sets Stabilizers
- Cable
- 1 Type-C to Type-C Cable
- 1 Type-A to Type-C Adapter
- 1 Extension Adapter for Receiver
- Receiver
- 1 Type-A 2.4GHz Receiver
- 1 Type-C 2.4 GHz Receiver
- Assembled
- 1 Set Switches (Pre-installed)
- 1 Set Keycaps (Pre-installed)
- Tools
- 1 Keycap & Switch Puller
- 1 Screwdriver
- 1 Hex Key
