| Product Attribute | Attribute Value |
|---|---|
| Application | Control Systems |
| For Use With | groov EPIC® System |
| Frequency | 140 Hz |
| Input Type | AC/DC Input |
| Mounting Type | DIN Rail |
| Number of Channels | 8 |
| Series | |
| Special Features | Lifetime Warranty |
| Voltage, Operating | 0 to 250 VAC |
| Wire Size | 14 - 28 AWG |
Overview

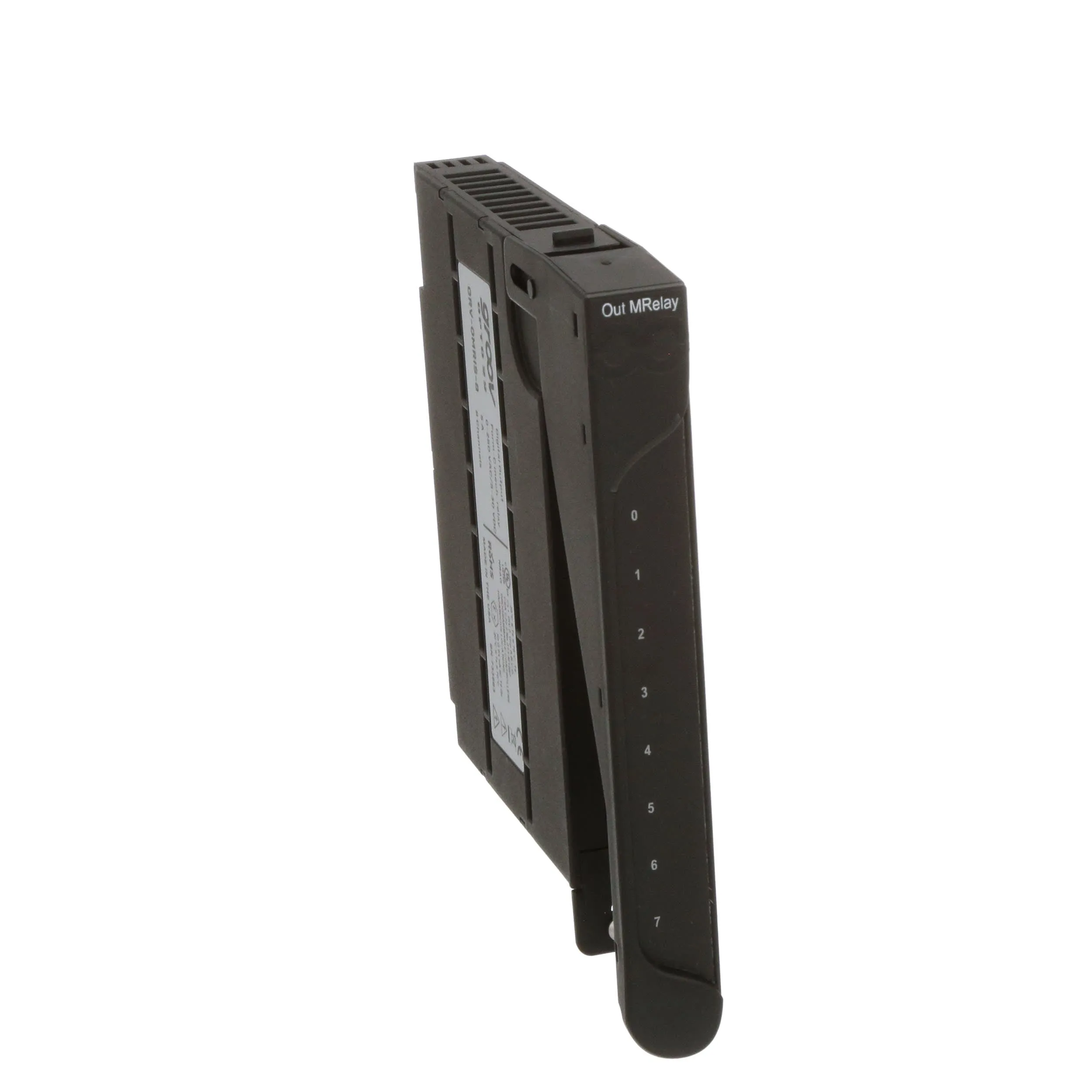

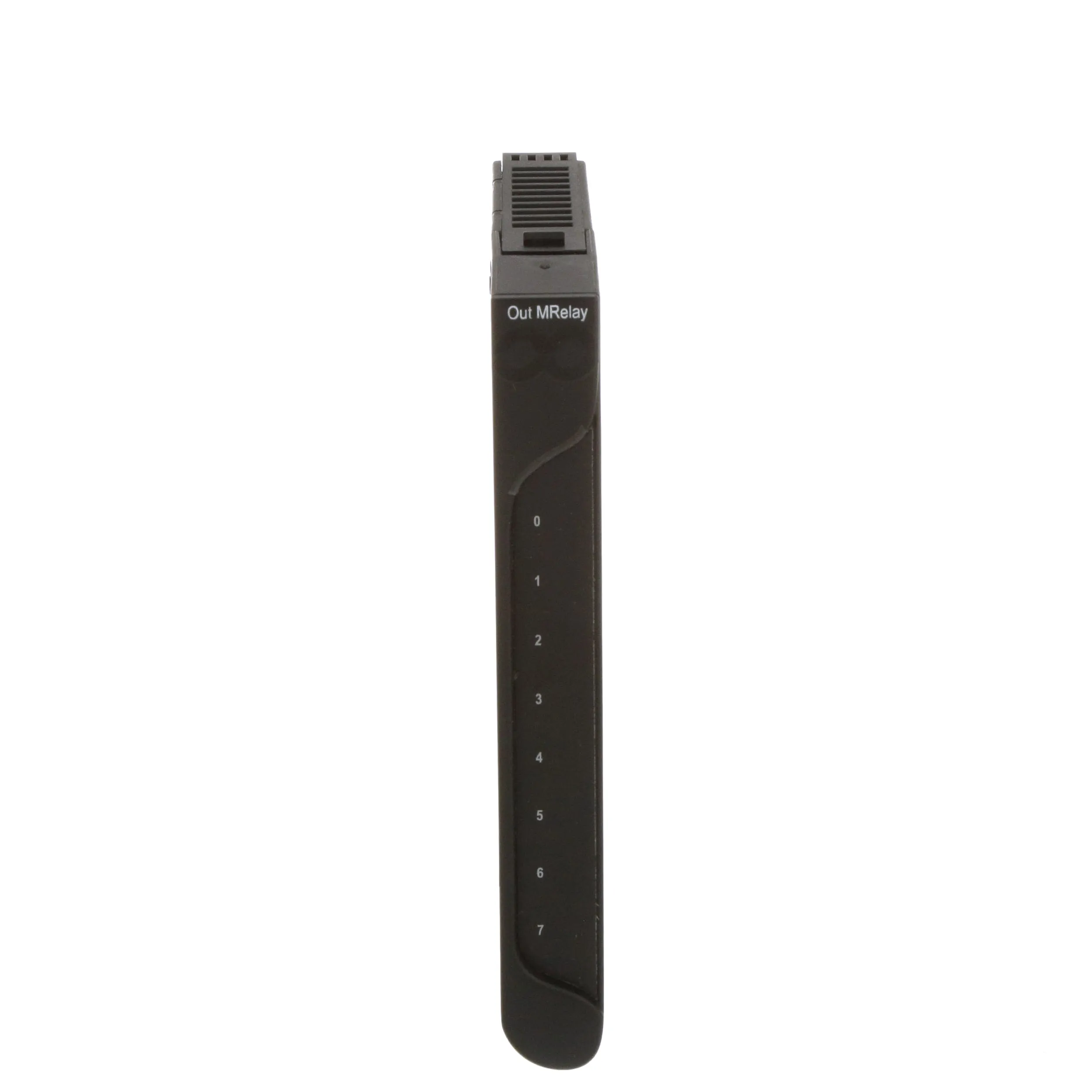

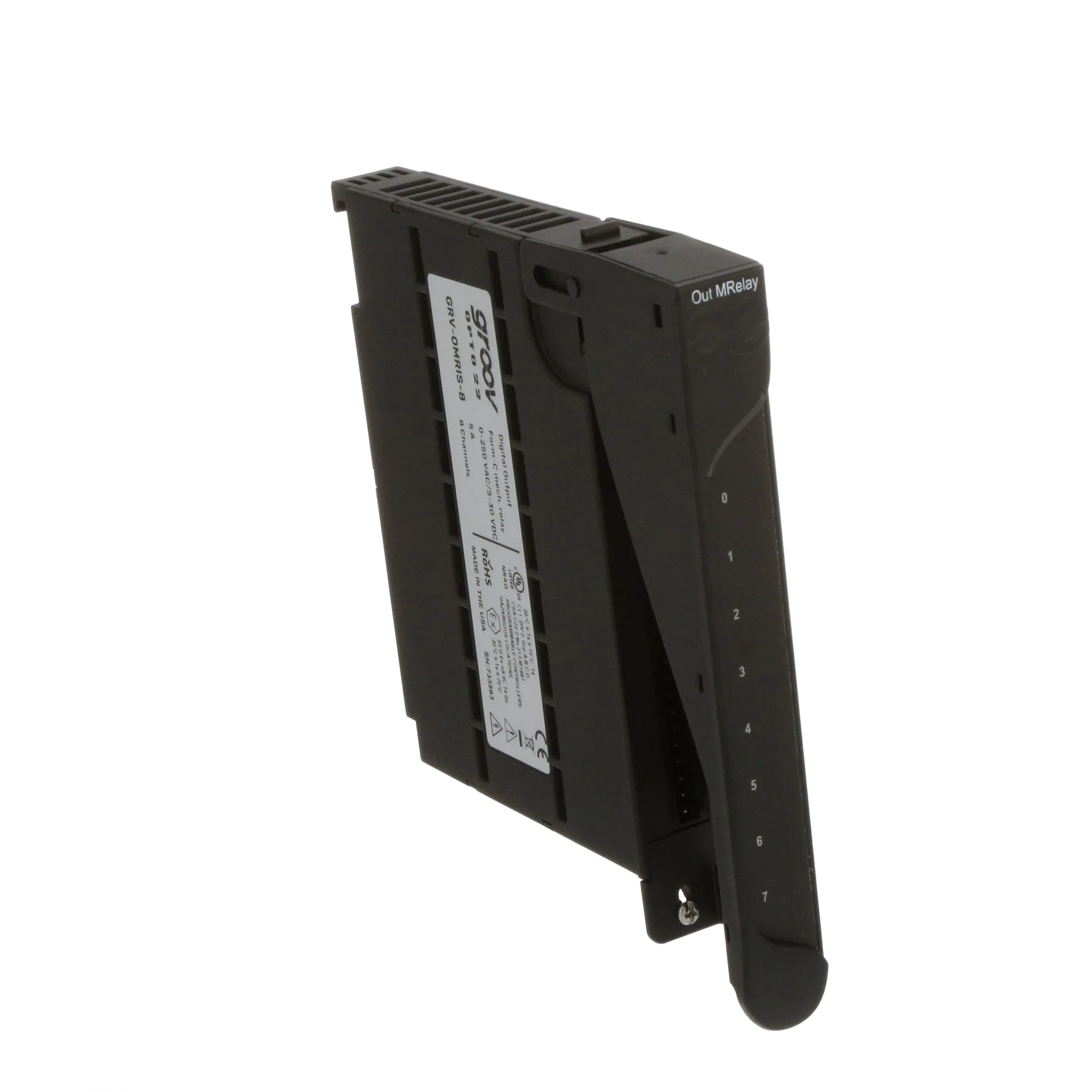

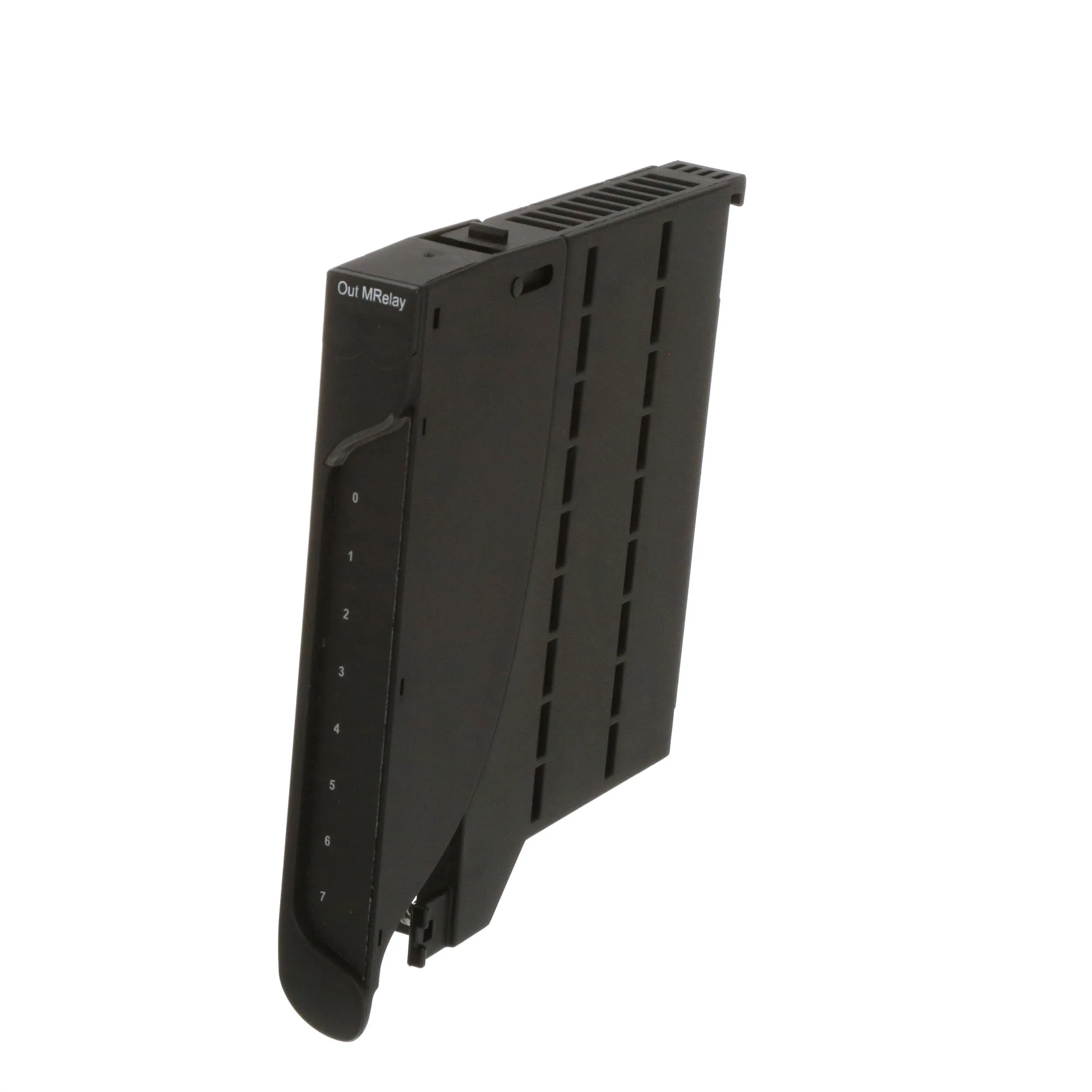

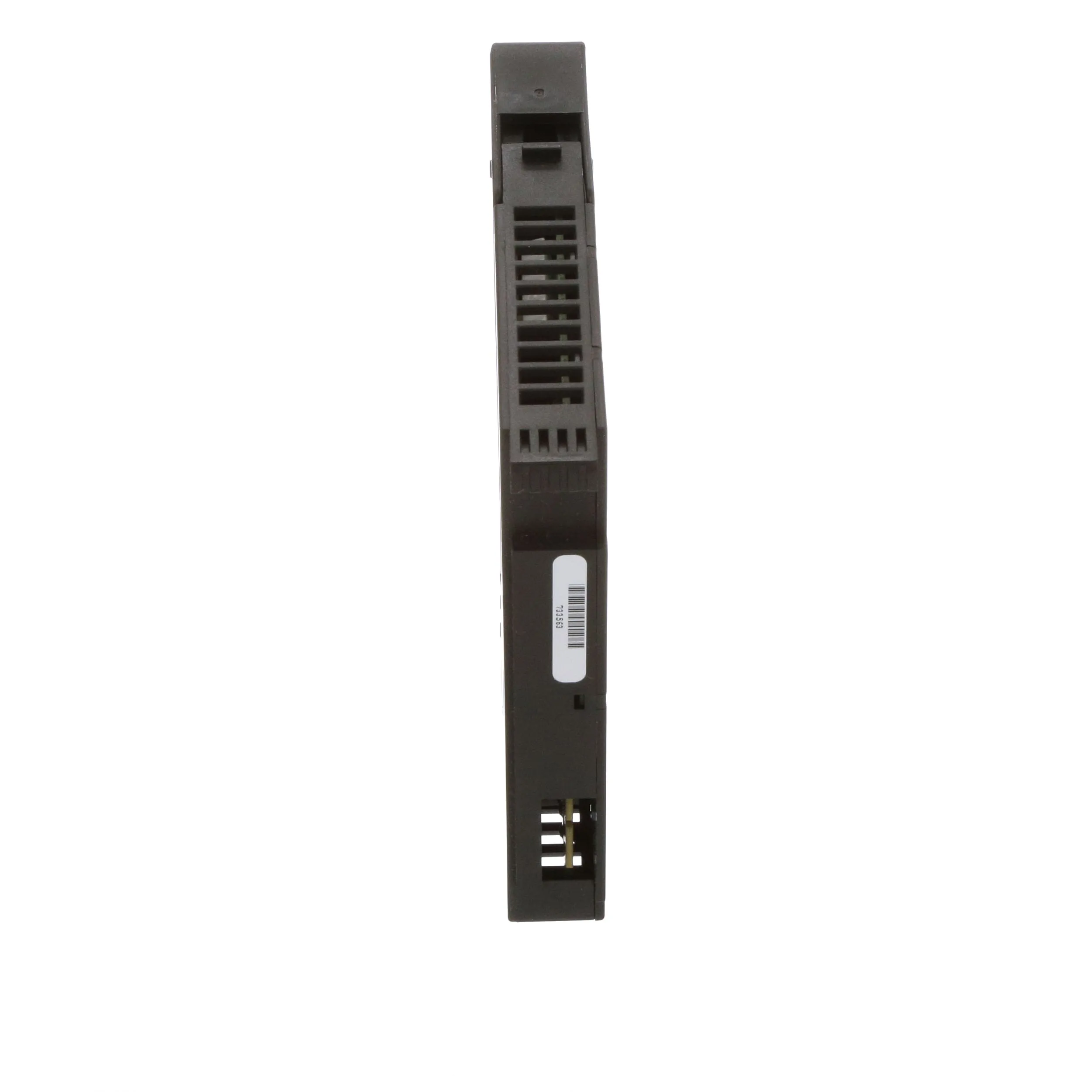

Opto22 groov EPIC Series — GRV-OMRIS-8 | AC/DC 8 Channel Discrete Output, Electromechanical Relay, 0-250 VAC/5-30 VDC, 5 A:
groov mechanical relay output modules offer 8 independent Form C relay channels for switching loads of up to 5 amps at 250 VAC or 30 VDC. These are Form C (SPDT) relays, so each of the 8 mechanical relays can be wired as normally open or normally closed. Fusing is not provided; you must provide external fusing when wiring the module. groov mechanical power relay output modules provide channel-to-channel isolation. These modules can mechanically switch either AC or DC loads, potentially reducing the number of modules needed. Additionally, groov mechanical power relay output modules offer little or no leakage current when the contacts are open. These modules are suitable for piloting electronic coil contactors
Features:
